ue Concave Aluminum Coil Pipe Metal Chain Automatic Casing Bvr
Zipper Wire Tape Belt Cutter

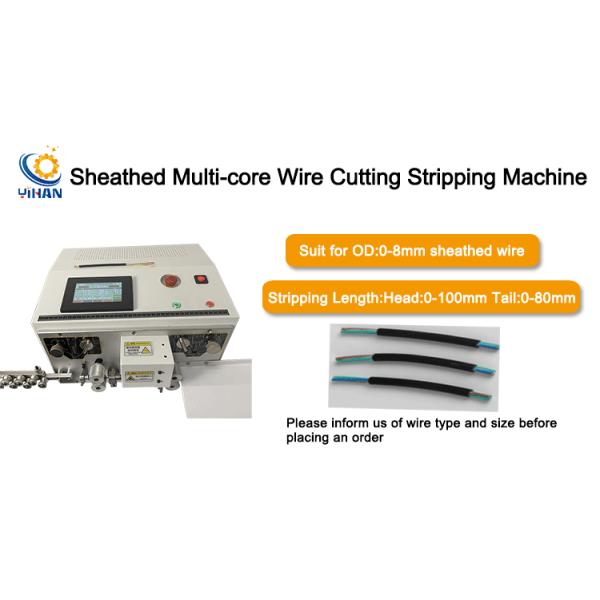

Automatic Full Computer Wire Stripping Machine adopt the advanced
automation technology from Japan,Taiwan.
It is a kind of numerical control equipment.
Widely used in the electronics industry, the city ahs, electrical
appliances, motor, lamps, toys, and othervarious products of wire
processing.
Optimal stripped wire PVC/teflon/silica gel line /. Glass fiber,
etc.
| Available Wire Diameter : | 1-8mm |
| Max Conduit Diameter: | 9mm |
| Cutting Length: | 1-99999mm |
| Stripping Length: | Outside head 0-100mm tail 0-80mm |
| Middle Stripping Section: | Max 15 |
| Speed: | 1000-3000pcs/h |
| Display Way: | English LCD Display |
| Drive Mode: | 4 Wheels Drive |
| Blade Material: | High Speed Steel |
| Appropriate Wire: | Multi-core sheath Wire ,Single Wire,PVC tubes,PVC tubes |
| Power Supply: | 220V/50HZ 110V/60HZ(Customized) |
| Power Rating: | 250W |
| Size: | 560*520*480mm |
| Weight: | 37KG |
| Model | YH-900-H06 | YH-900-H10 | YH-900-H12 | YH-900-H14 |
| Photo |  |  |  |  |
| Multi-core Wire OD Range | 1-6MM | 1-10MM | 2-12MM | 3-14MM |
| OD of Feeding | Φ7 | Φ10 | Φ12 | Φ14 |
| Stripping Length | Head 0-100mm | Head 0-100 mm | Head 0-100 mm | Head 0-100mm |
| Tail 0-80 mm | Tail 0-80 mm | Tail 0-80 mm | Tail 0-80mm |
| Cutting Length | 1-99999mm | 1-99999mm | 1-99999mm | 1-99999mm |
| Avaible Wire | OD 1-6mm Multi-core Sheath Wire, 0.5-4MM2 BVR Wires | OD 1-10mm Multi-core Sheath Wire, 0.5-6mm2 BVR Wires | OD 2-12mm Multi-core Sheath Wire, 0.5-10mm2 BVR Wires | OD 3-14mm Multi-core Sheath Wire, 1.0-16MM2 BVR Wire |
| Model | YH-900-H12D | YH-900-H16D | We can produce the machine according to customer's requirement
|
| Photo |  | |
| Multi-core Wire OD Range | 3-12MM | 3-16MM |
| OD 0f Feeding | Φ14 | Φ18 |
| Stripping Length | Head 150-300mm | Head 150-500mm |
| Tail 0-120mm | Tail 0-120mm |
| Cutting Length | 1-99999mm | 1-99999mm |
| Available Wire | OD 3-12mm Multi-core Sheath Wire, 0.5-16MM2 BVR Wire | OD 3-16mm Multi-core Sheath Wire, 0.1-25mm2 BVR Wire |
1. Why choose us?
We provide overall solutions for processing equipment. Our standard
equipment is very complete, all are in stock and can be shipped
quickly. We have our own equipment factory, which can lightly
customize equipment according to customer requirements, such as
ordering different appearances and brands for agents, and
non-standard equipment according to customer requirements.
2. Should I worry about the quality?
Before delivery, we do test the machine working condition for you.
Take a video of the normal operation of the machine to you, and
then confirm the delivery
3.How can I know your machine is designed for my product?
You tell us the specific parameters of your product, or you can
send us samples of your product and we test it on machine.
Video for you to make samples
4. How to operate the equipment?
My friend, don't worry about it, we have made vedio for you, it
will show you how to do it step by step. Contact our engineers at
any time when you don’t understand, support video and telephone
communication
5.When the machine can't work well,What should I do?
The Engineer is online for 24-hours, they can check the problems
and then give you solution way very soon. Please rest assured that
manual will be offered along with machine,ensuring you can operate
the machine easily.
