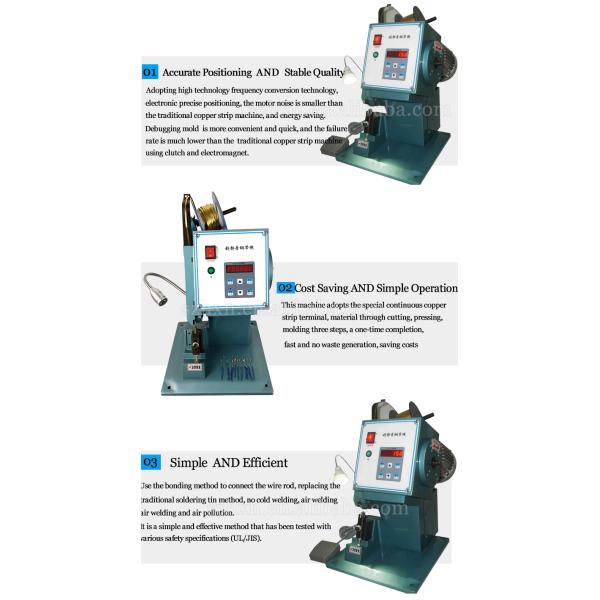

1: This machine is designed for the wire that needs riveting,
pressing the riveting and connecting the wire to replace the traditional welding method.
2: Using special continuous copper strip terminal, the material is
cut, formed, pressed once, quickly and without waste, saving cost.
3: The copper belt is treated by special grain, and the endurance
is very strong after riveting.
Scope of application: the connection between the xenon lamp and the
resistor, the connection between the slide switch and the wire, the
connection between the high temperature heating elements, and the connection between the
thermosensitive elements.nt Hot Sale Electric Mute Double Head 8mm Splicing And Crimping
Copper Belt Crimp Machine
| Product Name | Copper belt wire connector crimping machine |
| Model | YH-R3.0T |
| Power | 1100w |
| Wire Range | less than 15mm2 |
| Nominal pressure | 30KN |
| Slide rail stroke | 30mm |
| Work efficiency | 2000 times/hour |
| Weight | 90KG |
| Dimension | 580*350*530mm |
| Applicable copper strip | 2mm/4mm/6mm/8mm/10mm/12mm |
| Model | YH-1.8T | YH-R3.0T | YH-R4.0T |
| Power | 550W | 1100W | 1500W |
| Wire Range | less than 6mm2 | less than 15mm2 | less than 15mm2 |
| Nominal pressure | 15KN | 30KN | 30KN |
| Slide rail stroke | 30mm | 30mm | 30mm |
| Work efficiency | 2000 times/hour | 2000 times/hour | 2000 times/hour |
| Weight | 45KG | 90KG | 110KG |
| Dimension | 370*400*500mm | 580*350*530mm | 600*350*550mm |
| Applicable copper strip | 2mm/4mm/6mm | 2mm/4mm/6mm/8mm/10mm | 2mm/4mm/6mm/8mm/10mm/12mm |
1. Why choose us?
We provide overall solutions for processing equipment. Our standard
equipment is very complete, all are in stock and can be shipped
quickly. We have our own equipment factory, which can lightly
customize equipment according to customer requirements, such as
ordering different appearances and brands for agents, and
non-standard equipment according to customer requirements.
2. Should I worry about the quality?
Before delivery, we do test the machine working condition for you.
Take a video of the normal operation of the machine to you, and
then confirm the delivery
3.How can I know your machine is designed for my product?
You tell us the specific parameters of your product, or you can
send us samples of your product and we test it on machine.
Video for you to make samples
4. How to operate the equipment?
My friend, don't worry about it, we have made vedio for you, it
will show you how to do it step by step. Contact our engineers at
any time when you don’t understand, support video and telephone
communication
5.When the machine can't work well,What should I do?
The Engineer is online for 24-hours, they can check the problems
and then give you solution way very soon. Please rest assured that
manual will be offered along with machine,ensuring you can operate
the machine easily.
6.Do your product have warranty and refund or return?
Yes, All our products have one year warranty and no reason refund
within 7 days after customer received product(customer need to pay
for the Return shipping fee
