YH-DT4.0T 4t Step Feeding Copper Belt Riveting Machine with 30mm Crimping Stroke

Ask Lasest Price
Brand Name :	Yihan
Model Number :	YH-DT4.0T
Supply Ability :	1000 Set/Sets per Month
Price :	$2,200.00/sets 1-4 sets

Add to Cart

Product Details
Company Profile

YH-DT4.0T 4t Step Feeding Copper Belt Riveting Machine with 30mm Crimping Stroke

1: This machine is designed for the wire that needs riveting, pressing the riveting and connecting the wire to replace the traditional welding method.

2: Using special continuous copper strip terminal, the material is cut, formed, pressed once, quickly and without waste, saving cost.

3: The copper belt is treated by special grain, and the endurance is very strong after riveting.

4: Scope of application: the connection between the xenon lamp and the resistor, the connection between the slide switch and the wire, the connection between the high temperature heating elements, and the connection between the thermosensitive elements.

5:Stepper motor electric feeding, feeding length is more accurate, debugging is more convenient.

1. The connection between the neon lamp and the resistor, the connection between the LED and the wire

2. The slide switch is connected to the wire (replaces hook welding)

3. Connection of high temperature heating element

4. Connection of sensitive components (such as reed switch, thermostat fuse)

5. Connection between transformer tap and wire

YH-DT4.0T 4t Step Feeding Copper Belt Riveting Machine with 30mm Crimping Stroke

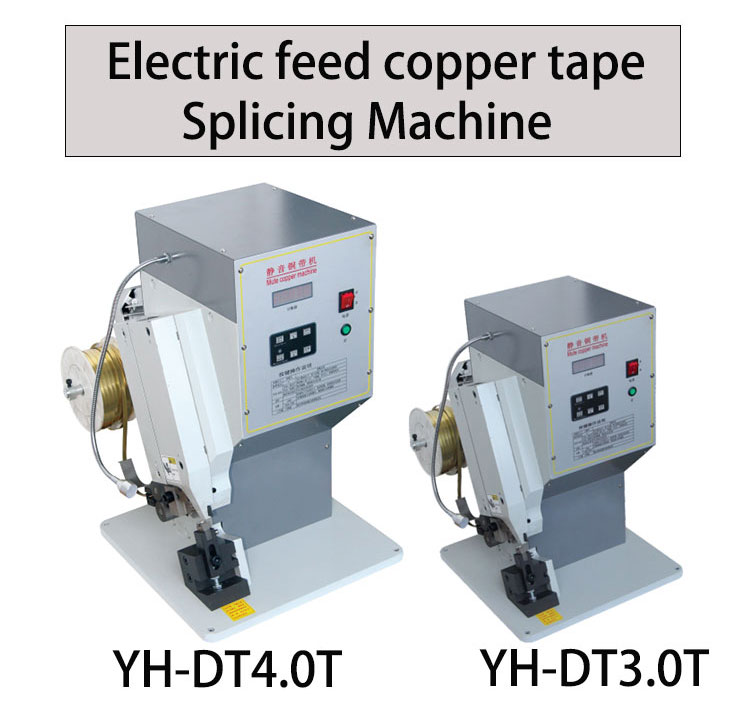

Product Name	Electric feed copper tape splicing Machine
Model	YH-DT4.0T	YH-DT3.0T
Feeding method	Stepper motor automatic feeding
Power Supply	AC220V 50/60HZ
Pressing capicity	4000KG	3000KG
Stroke Length	30mm	23mm
Work efficiency	2000 times/hour
Motor Power	1500W	1100W
Height adjustment	8MM	8MM
Dimension	500380580mm	400290450mm
Weight	105KG	45KG
